Diffused Silicon Electronic Air Pressure Sensor I2C SPI Output signal

Place of Origin : Anhui, China

Brand Name : WNK

Model Number : WD19

Packaging Details : 100 pcs per master carton;

Supply Ability : 2000 Piece/Pieces per Month 4-20mA pressure sensor

Price : $10.00 - $15.00/Pieces

Warranty : 1 YEAR

Customized support : OEM, ODM

Output signal : I2C, SPI

Pressure range : 0- 400 KPa ~10 MPa

Burst pressure : 10xP

Housing material : 316L stainless steel

Sensor Type : Diffused silicon oil MEMS pressure sensor

Measured Medeia : Air, Gas, Steam, Water, Liquid

Accuracy : ±0.5% FS, ±1.0% FS,

Total Error Band : ±1.0%

Power supply : 3.3V, 5V, 12V, 24V

Sensor Contact : 316L

Port : Shanghai/Ningbo

Contact Now

Low Cost Diffused Silicon Pressure Sensor For Air Gas Steam

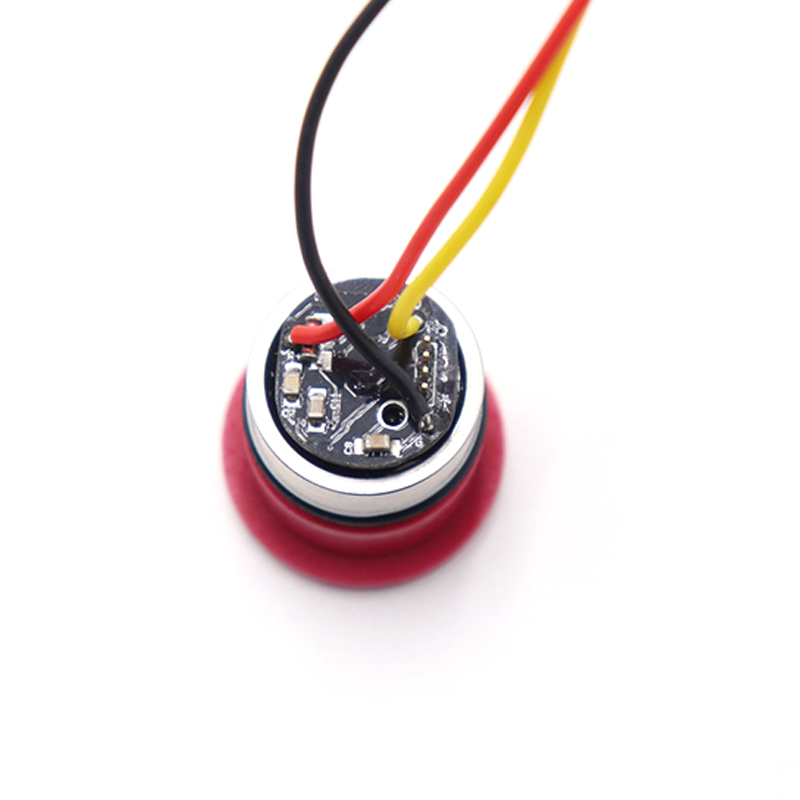

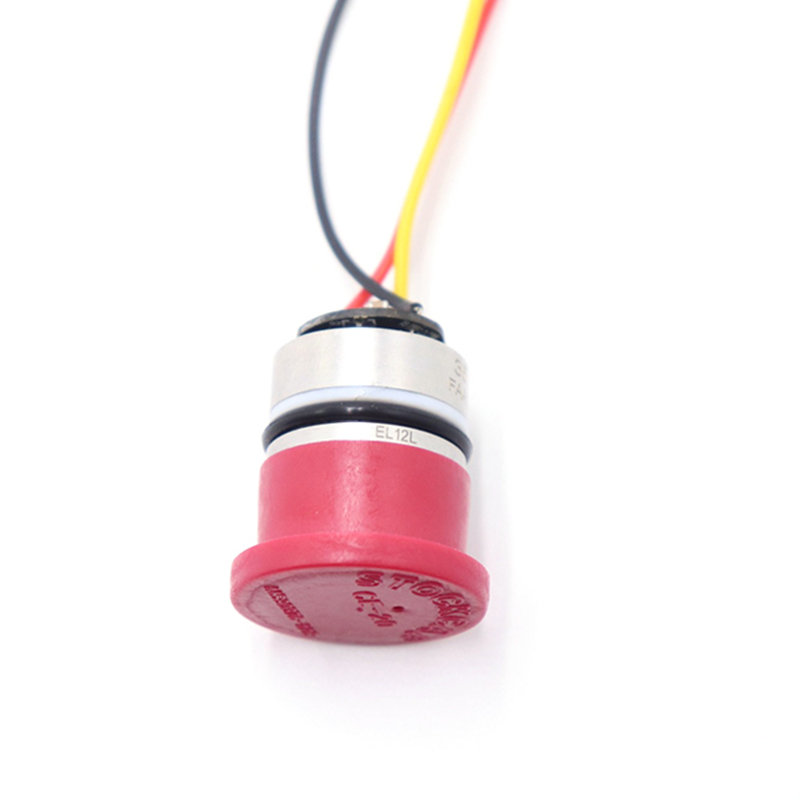

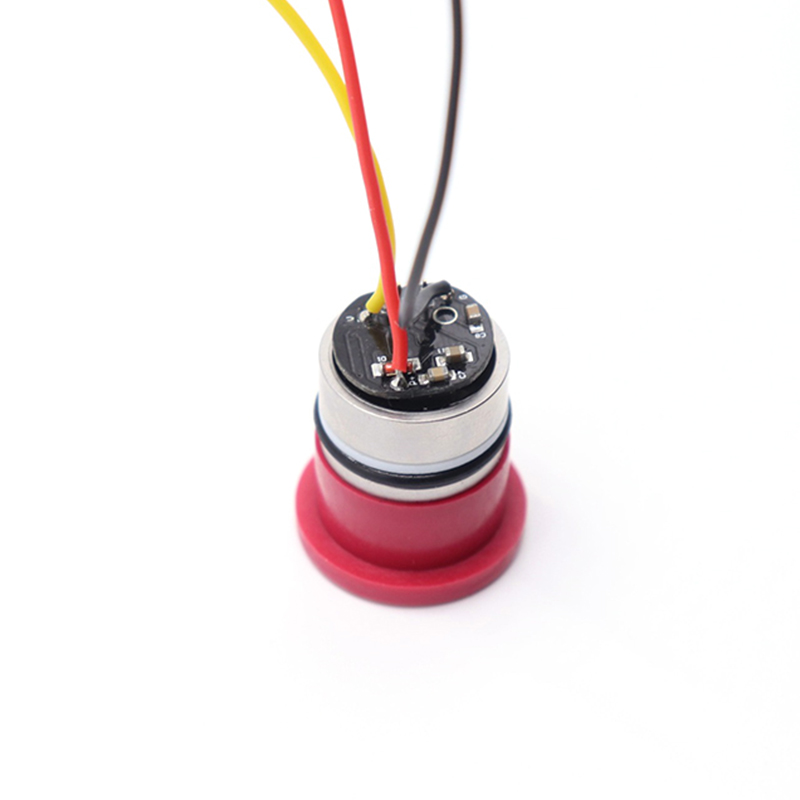

WD19 Digital I2C/SPI Output Pressure Sensor

WD19 series are based on piezoresistive silicon pressure sensors packaged in a 316L stainless steel housing. The sensing package utilizes silicon oil to transfer pressure from the 316L diaphragm to the sensing element. This digital output pressure sensor supports I2C and SPI interface protocols, may come in a 3.3 or 5.0Vdc supply voltage.
It is designed for o-ring mounting for the applications where compatibility with corrosive media is required.A custom ASIC is used for temperature compensation, offset correction, and provides a digital output of 10~90% or 5~95%.

Features

High stability and high accuracy
Low cost OEM
Suited for pressure range: 0-40Kpa…7Mpa
Wide temperature compensation range: total error<1%
Measurable of corrosive media ( media compatible with 316L)
Standard mounting size
Communication: I²C or SPI

Specifications

WNK Pressure Sensor Series

WA19 Diezoresistive Silicon Oil Filled Analog Pressure Sensor
WD19 Diezoresistive Silicon Oil Filled Digital Pressure Sensor
WA16 Diezoresistive Silicon Oil Filled Weldable Pressure Sensor
WNK80MA Small Size Oil Filled Sensor Transmitter
WA18 Diezoresistive Silicon Oilless Pressure Sensor
WNK05 Capacitive Pressure Sensor

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea

If you have another question, pls feel free to contact us as below
