Anti Corrosive Underwater Pressure Sensor Brass Cable outlet

Product Categories

Hefei WNK Smart Technology Co.,Ltd

Contact Now

Place of Origin : Anhui, China

Brand Name : WNK

Model Number : WNK83mA

Packaging Details : each product in one inner paper box with protection

Supply Ability : 2000 Set/Sets per Week low cost pressure sensor

MOQ : 10 Pieces

Price : $6.50/Pieces >=10 Pieces

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Delivery Time : 5-8 work days

Warranty : 1 YEAR

Customized support : OEM, ODM

Output signals : 0.5V-4.5V

Measured media : liquid, gas and steam

Accuracy : 1%F.S.

Protection class : IP65

Housing material : 304SST

Power Supply : 4.75V-5.25V

Electrical connection : Cable outlet, connector

Applicable media : Liquid, gas and steam

Pressure range : 0-1MPa

Pressure measurment : Gauge Pressure, Sealing pressure

Port : shanghai

Contact Now

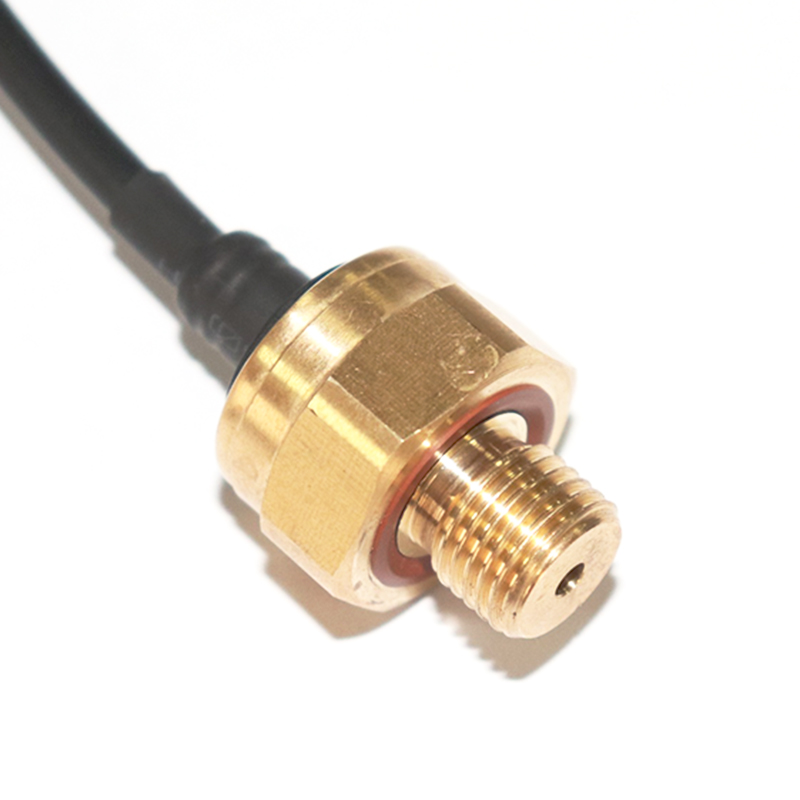

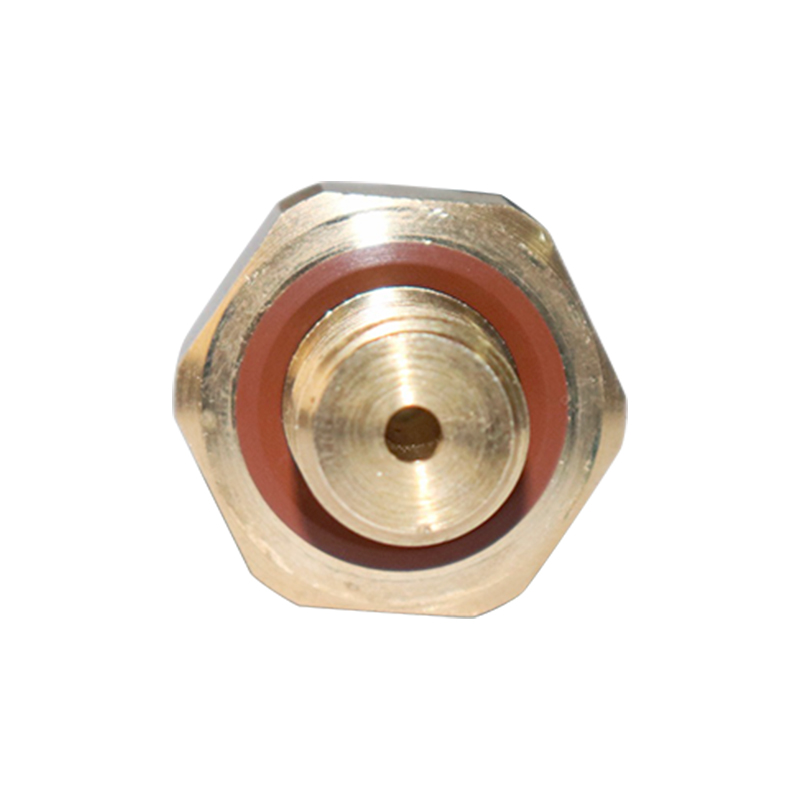

Low Cost 0.5V-4.5V Output Anti-Corrosive Brass Ceramic Capacitive Pressure Sensor

Applicable media	Liquid, gas and steam
Pressure range	0-1MPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, Sealing pressure
Output	0.5-4.5V
Power supply	4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Compensation temperature	-20~70ºC
Ambient temperature	-40~110ºC
Working temperature	-40~110ºC
Temperature drift(zero)	±0.15% F.S. (-20~70ºC)
Temperature drift(full range)	±0.15% F.S. (-20~70ºC)
Electrical connection	Cable outlet
Mechanical connection	G1/4
Housing material	Brass

Product Show

Hot Product

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

A: 12 month from shipment date, for non-man-made damages.

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
