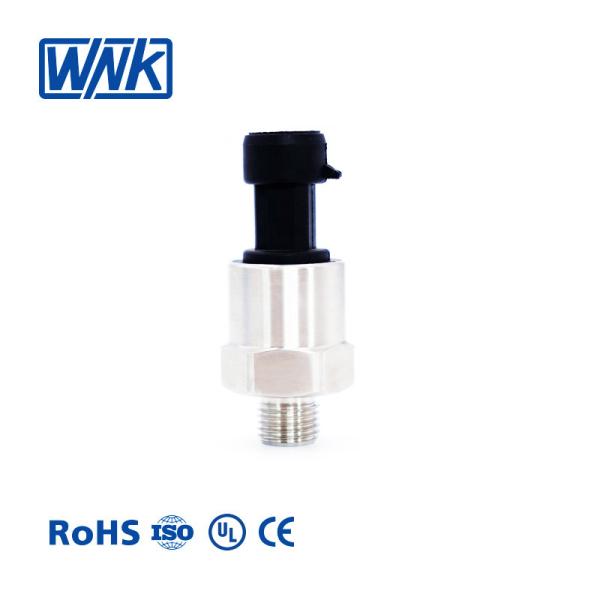

WNK Measuring Instruments Water Pressure Sensor 304SST Housing

Brand Name : WNK

Model Number : WNK80mA

Certification : CE, ROHS

Place of Origin : Anhui, China

MOQ : 1pcs

Price : $12.00 - $19.00/Pieces

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 2000 Set/Sets per Week

Delivery Time : 5-8 work days

Packaging Details : each product in one inner paper box with foam protection

Warranty : 1 YEAR

Customized support : OEM, ODM

Measured media : liquid, gas and steam

Output signals : 4~20mA, 1-5V,

Accuracy : 0.2%F.S, 0.5%F.S

Pressure range : 0~6MPa

Protection class : IP65

Housing material : 304SST

Power Supply : 24VDC/12VDC/5VDC

Product name : WNK Sensor Pressure Measuring Instruments Water Pressure Sensor

Keyword : mems pressure sensor

MOQ : 1set

Port : Shanghai port

Contact Now

WNK Sensor Pressure Measuring Instruments Water Pressure Sensor

WNK Sensor Pressure

Smart Mems 4-20mA Vacumm Pressure Transducer Sensor
WNK80MA integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably

Product Spec

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media	Liquid, Gas
Pressure range	0-20kPa~350bar
Pressure measurment	Gauge Pressure, Absolute pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V
Accuracy(linearity,Hysteresis and Repeatability)	0.5%F.S.(Typical)
Power supply	24VDC/12VDC/5VDC
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
power(electrical) connect	Parker joint, customization
Mechanical connection	G1/4, 1/8NPT,M12*1.5, customize
Housing material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65
